HOWARD AVENUE REPLACEMENT PROJECT



  • OVERVIEW
  • DESIGN OPTIONS
  • WHAT TO EXPECT DURING CONSTRUCTION
  • COMMUNITY MEETINGS & DOCUMENTS
  • CONTACT US

OVERVIEW

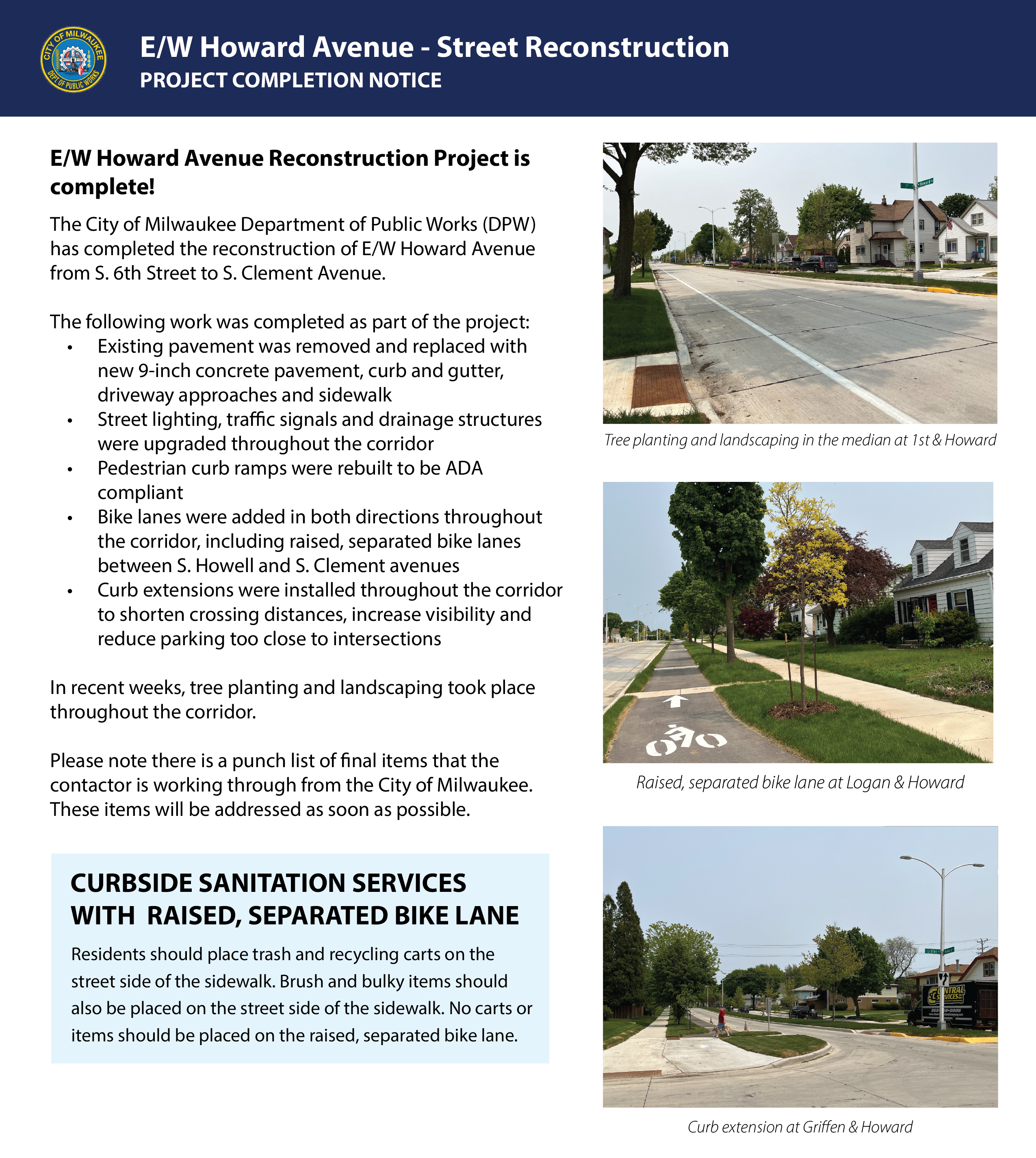

The City of Milwaukee Department of Public Works (DPW) and State of Wisconsin Department of Transportation (WisDOT) are planning to replace Howard Avenue from S. 6th Street to S. Clement Avenue (1.3 miles). The scope of work includes removing existing pavement and replacing with new 9-inch concrete pavement, curb & gutter, driveway approaches and sidewalk. Pedestrian curb ramps will be built to meet ADA compliance. Drainage structures, street lighting and traffic signals will also be upgraded. Bike lanes will be added in both directions throughout the corridor.

PROJECT SCHEDULE

Construction is scheduled to begin in spring 2024. Tree removal for the project is estimated to begin March 4 and conclude on or before April 1. The full map of trees being removed and planted can be found here. Simplified maps of trees being removed are linked below:

GOALS

  • Upgrade pavement conditions
  • Better organize all modes of traffic
  • Manage driving speeds
  • Improve visibility for all users
  • Make travel safe and comfortable for everyone

FUNDING

Estimated construction cost is $8.0 to $8.5 million dollars. Approximate construction cost breakdown:

  • 80% cost covered by the State
  • 20% cost covered by the City

FACTS

  • East/West Howard Avenue is a Local Road, classified as a minor arterial from Clement to Howell, and a MAP 21 Principal arterial from Howell to 6th.
  • Average Daily Traffic Count: 12,200-22,800 vehicles
  • Posted speed: 30 mph
  • No existing bus routes
  • Roadway Width: 28-ft roadways

FINAL DESIGN PLAN

We divided Howard Avenue into two sections for design plans. Below are the final designs for each section.

Design plans for Howard Ave - S. 6th St. to S. Howell Ave.

Design plans for Howard Ave - S. Howell Ave. to S. Clement Ave.




PROPOSED FINAL DESIGN PLAN

We divided Howard Avenue into two sections for design plans. The two preferred alternative design sections shown below will move forward into final design. These two designs were shown at the public involvement meeting on June 6, 2022 at Bay View Montessori School, 357 East Howard Avenue.

1. HOWARD AVENUE - SOUTH 6TH STREET TO SOUTH HOWELL AVENUE
PREFERRED ALTERNATIVE DESIGN SECTION

Features:

  • Two 10-ft travel lanes in each direction
  • 5.75-ft on-street bike lane on each side
  • 16-ft median
  • 7.25-ft curbside terrace on each side
  • 6-ft sidewalk on each side

2. HOWARD AVENUE - SOUTH HOWELL AVENUE TO SOUTH CLEMENT AVENUE
PREFERRED ALTERNATIVE DESIGN SECTION

Features:

  • One 10-ft travel lane in each direction
  • 8-ft parking lane on each side
  • 6.5-ft bike lane on each side, separated from the road by 3-ft terrace
  • 5-6 ft terrace
  • 6-ft sidewalk on each side



PREVIOUS ALTERNATIVE DESIGN OPTIONS

The following design alternatives were previously presented at the virtual Public Involvement Meeting in May 2021. We developed these design options using the feedback and input we received from residents and the community from the 1st Public Involvement Meeting held in October 2020. We divided Howard Avenue into two sections to review:

1. Howard Avenue from South 6th Street to South Howell Avenue: 4 design options
2. Howard Avenue from South Howell Avenue to South Clement Avenue: 2 design options

HOWARD AVENUE - SOUTH 6TH STREET TO SOUTH HOWELL AVENUE
EXISTING SECTION

Existing Features:

  • Two driving lanes in each direction (11 ft and 10 ft)
  • Median (14 ft)
  • Parking lane on both sides (7 ft)
  • Curbside terrace (8 ft)
  • Sidewalk (6 ft)


HOWARD AVENUE - SOUTH 6TH STREET TO SOUTH HOWELL AVENUE

There are four design options for the segment of Howard Avenue from South 6th Street to South Howell Avenue.


OPTION 1

Option 1 Features:

  • Median removed
  • Two driving lanes in each direction (both 11 ft)
  • Parking lane on both sides (8 ft)
  • Protected bike lane in each direction (6 ft)
  • Curbside terrace (5 ft)
  • Sidewalk (5 ft)
  • 49 existing trees and 2 signature beds are anticipated to be removed


OPTION 2

Option 2 Features:

  • Median removed
  • Two driving lanes in each direction (both 11 ft)
  • On-street bike lane in each direction (5 ft)
  • Parking lane on both sides(8 ft)
  • Curbside terrace (9 ft)
  • Sidewalk (5 ft)
  • 7 existing trees and 2 signature beds are anticipated to be removed



OPTION 3

Option 3 Features:

  • Median (16 ft)
  • Two driving lanes in each direction (both 11 ft)
  • No parking lane in either direction
  • Off-street raised bike lane (5 ft, plus 3 ft clearance)
  • Curbside terrace (5 ft)
  • Sidewalk (5 ft)
  • 44 existing trees are anticipated to be removed


OPTION 4

Option 4 Features:

  • Median (14 ft)
  • Two driving lanes in each direction (both 11 ft)
  • Parking lane on both sides (8 ft)
  • Curbside terrace (7ft)
  • Sidewalk (6 ft)
  • 12 existing trees are anticipated to be removed




HOWARD AVENUE FROM SOUTH HOWELL AVENUE TO SOUTH CLEMENT AVENUE
EXISTING SECTION

Existing Section Features:

  • Median (14 ft)
  • Two driving lanes in each direction (both 10 ft)
  • Parking lane on both sides (7 ft)
  • Curbside terrace (7 ft)
  • Sidewalk (6 ft)

OPTION A

Option A Features:

  • Median (16 ft)
  • One driving lane in each direction (11 ft)
  • On-street bike lane in each direction (5 ft)
  • Parking lane on both sides (8 ft)
  • Curbside terrace (9 ft)
  • Sidewalk (6 ft)
  • 3 existing trees are anticipated to be removed

OPTION B

Option B Features:

  • Median (16 ft)
  • One driving lane in each direction (11 ft)
  • Parking lane on both sides (8 ft)
  • Off-street raised bike lane in each direction (5 ft)
  • Curbside terrace (7 ft)
  • Sidewalk (6 ft)
  • 8 existing trees are anticipated to be removed

WHAT TO EXPECT DURING CONSTRUCTION

Start: Spring 2024

Traffic Stages

Stage 1

The north side of Howard Avenue, between South 6th Street and South Clement Avenue, is scheduled to be open to two-way traffic with one westbound lane and one eastbound lane while the south side of Howard Avenue is closed for construction. Access will be maintained at intersections per traffic control plans.

Stage 2

The south side of Howard Avenue, between South 6th Street and South Howell Avenue, is scheduled to be open to two-way traffic with one westbound lane and one eastbound lane while the north side of Howard Avenue is closed for construction. Access will be maintained at intersections per traffic control plans.

The south side of Howard Avenue, between South Howell Avenue and South Clement Avenue, is scheduled to be open to one-way eastbound traffic while the north side of Howard Avenue is closed for construction. Access will be maintained at intersections per traffic control plans.

Parking

On-street parking on Howard Avenue (within the project limits) will not be allowed during construction. Side streets will be available for on-street parking.

Detour

There will be detour routes associated with acccess to and from I-43 and I-94 during construction.

COMMUNITY MEETINGS & DOCUMENTS

The City of Milwaukee Department of Public Works holds public involvement meetings to receive input and share project details with residents and businesses located in the project area.

Public Involvement Meeting #3 - June 6, 2022 from 5:30 p.m. to 7:30 p.m.
Open house, in-person meeting at Bay View Montessori School, 357 East Howard Avenue, in the gymnasium


Virtual Public Involvement Meeting #2 - May 11, 2021 from 5:00 p.m. to 7:00 p.m.



Virtual Public Involvement Meeting #1 – October 7, 2020 from 6:00 p.m. to 8:00 p.m.




DOCUMENTS

PROJECT CONTACT

Sarah McClanahan, Marketing & Communications Officer
[email protected]
414-286-3318

Samuel Medhin, Project Manager
[email protected]
414-286-0474
